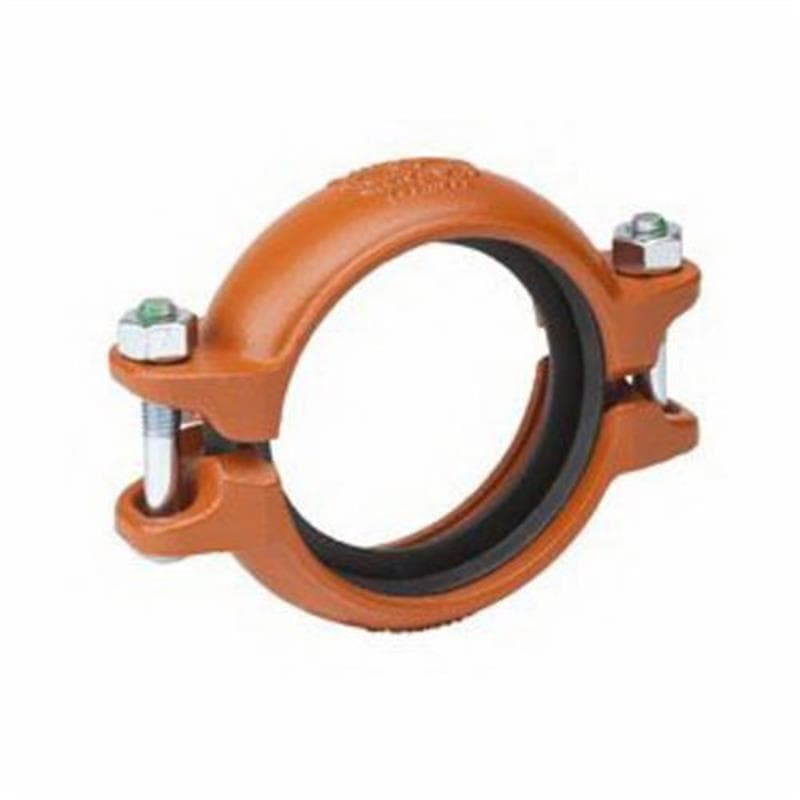

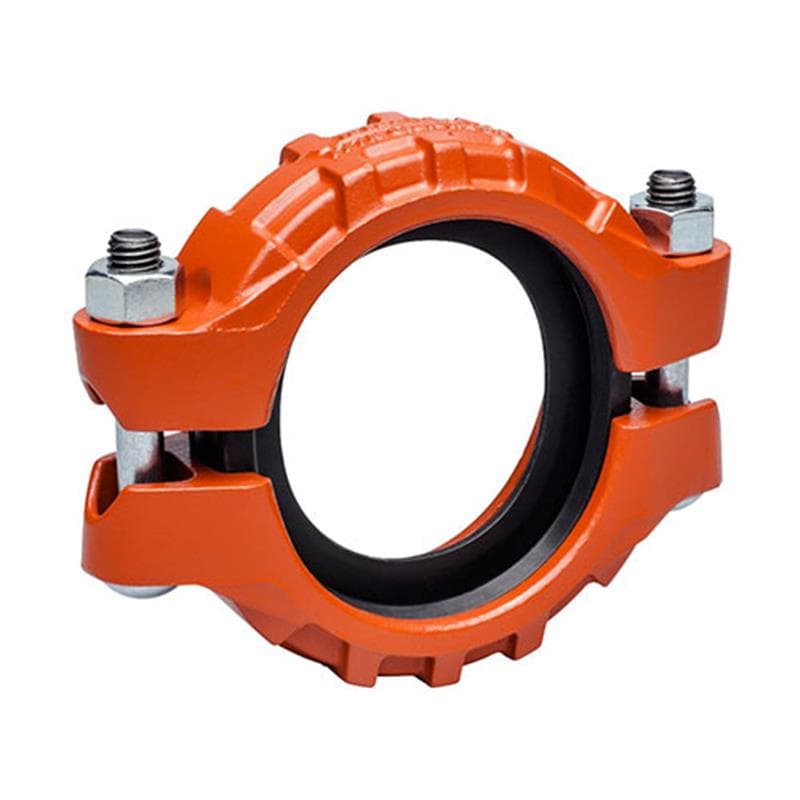

Victaulic® L020177PE0 QuickVic™ Flexible Pipe Coupling With Gasket, 2 in Nominal

Grade EHP EPDM gasket For use with steel pipes 3.87 in Dia x 5.59 in L pre-assembled, 3.56 in Dia x 5.39 in L x 2.05 in W joint assembled The Style 177 flexible coupling can accommodate pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 1000 psi/6900 kPa The coupling's maximum pressure rating will depend on the diameter and wall thickness of the pipe Sizes 2-4 in/50-100 mm may be used to join 304/304L and 316/316L Schedule 10 stainless steel pipe from full vacuum (29.9 in Hg/760 mm Hg) to a maximum rated working pressure of 300 psi/2065 kPa Bolts/nuts: Heat-treated plated carbon steel, trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183
