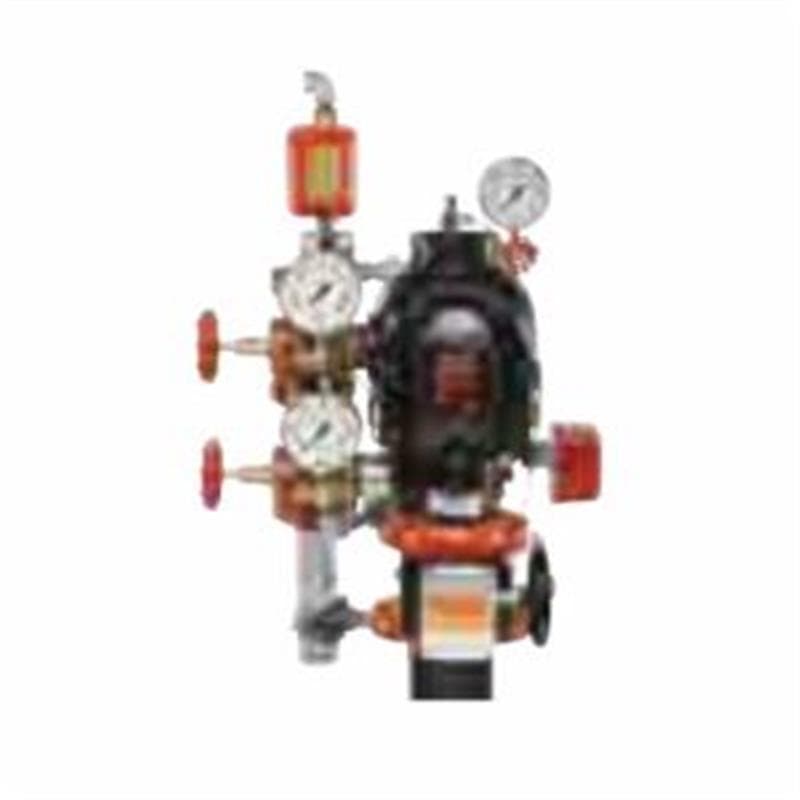

Victaulic® S020768405 FireLock NXT™ 768 Dry Check Valve, 2 in Nominal
Victaulic® S020768405 FireLock NXT™ 768 Dry Check Valve, 2 in Nominal, 300 psi, 2-3/8 in OD x 27-1/4 in H, Grooved, Media: Water, Pneumatic Actuator, Ductile Iron Body, Nitrile Bushing, Seat O-Ring, Series: 768
The low differential, unique latch and actuator design of the valve allows the valve to be reset without opening the valve The valve allows the water to operate a water motor alarm and/or electric pressure alarms, which continue until the flow of water stops Factory tested hydrostatically to 600 psi Aluminum bronze UNS-C95500 clapper Aluminum bronze UNS-C95500 latch Stainless 17-4 shaft Peroxide cured EPDM, ASTM D2000 clapper seal 300 series stainless steel springs Peroxide cured EPDM with fabric reinforcement diaphragm Vic-quick riser configuration Comes with series 776 low-pressure actuator
