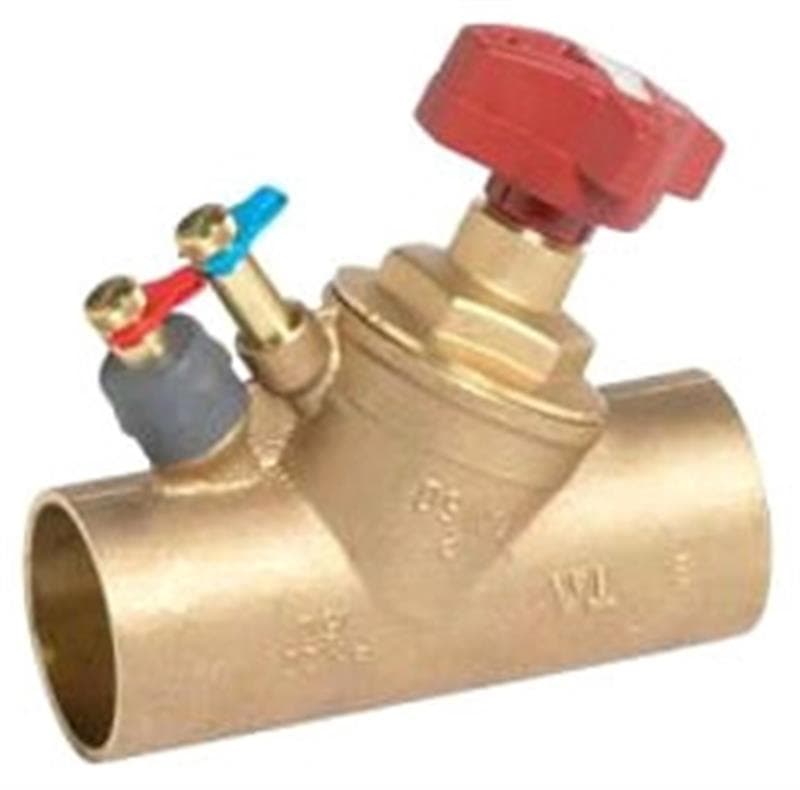

Victaulic® V006786CBV 786 Balancing Valve, 3/4 in Nominal
Victaulic® V006786CBV 786 Balancing Valve, 3/4 in Nominal, 300 psi Pressure, -4 to 250 deg F, 3.81 in Inlet to Outlet Length, 20 gpm Flow Rate, 1.05 in OD Dimensions, Solder End Style, Media: Water, Handwheel Actuator, 4 in Top to Inlet Center, AMETAL® Body, Metal Trim, EPDM Seat, Seal Softgoods, Series: 786
Body - Ametal (pressure die cast, nonporous copper alloy) All Tour and Anderson balancing valves include a concealed memory feature with a locking tamperproof setting Insulation kits are available for 1/2 to 6 in sizes for series 786 balancing valves Red polyamide plastic handwheel Ametal seat, EPDM seat seal/stem seals/probe seals
