Fujitsu/HALCYON AOUG15LZAH1

PN :
791537
MPN :
AOUG15LZAH1

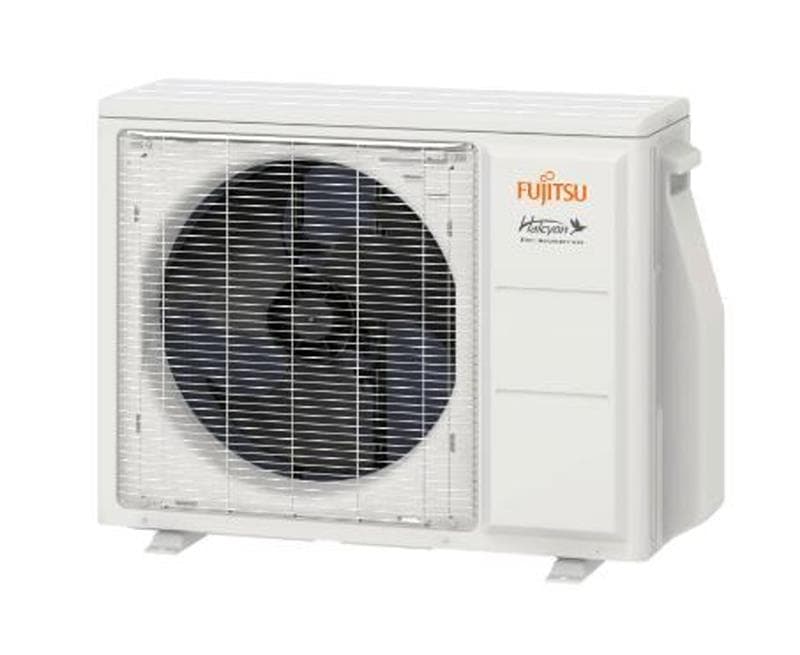

Fujitsu/HALCYON AOUG15LZAH1 15,000 BTU HP HIGH HEAT CONDENSING UNIT 230V

What's the price?

Sign in or Register for Pricing and Inventory


  • ETL Listed | AHRI Certified | ISO Certified | Energy Star Compliant

  • AttributeValueUOM
    Amps Cooling48A
    BTU Cooling Rating14500Btu/hr
    BTU Heat Rating18000Btu/hr
    Cooling Temperature Range °F14-115deg F
    Depth42562in
    EER Non-Ducted13.9
    HSPF Non-Ducted13.4
    Liquid Connection Size45017in
    Max. # of Connectable Indoor Units1
    Max. Connectable Capacity15000Btu/hr
    Max. Cooling Capacity BtuH18400Btu/hr
    Max. Each Pipe Length66
    Max. Fuse Size20A
    Max. Heating Capacity BtuH23900Btu/hr
    Max. Total Pipe Length66
    Maximum Air Flow1218cfm
    Min. # of Connectable Indoor Units1
    Min. Connectable Capacity15000Btu/hr
    Min. Cooling Capacity BtuH3100Btu/hr
    Min. Each Pipe Length10
    Min. Heating Capacity BtuH3100
    Min. Total Pipe Length10
    Nom. Capacity15000Btu/hr
    SEER Non-Ducted25.3
    Seer25.3
    Sound Pressure Cooling dBA45dBA
    Sound Pressure Heating dBA45dBA
    Suction Fitting44958in
    System FlexN
