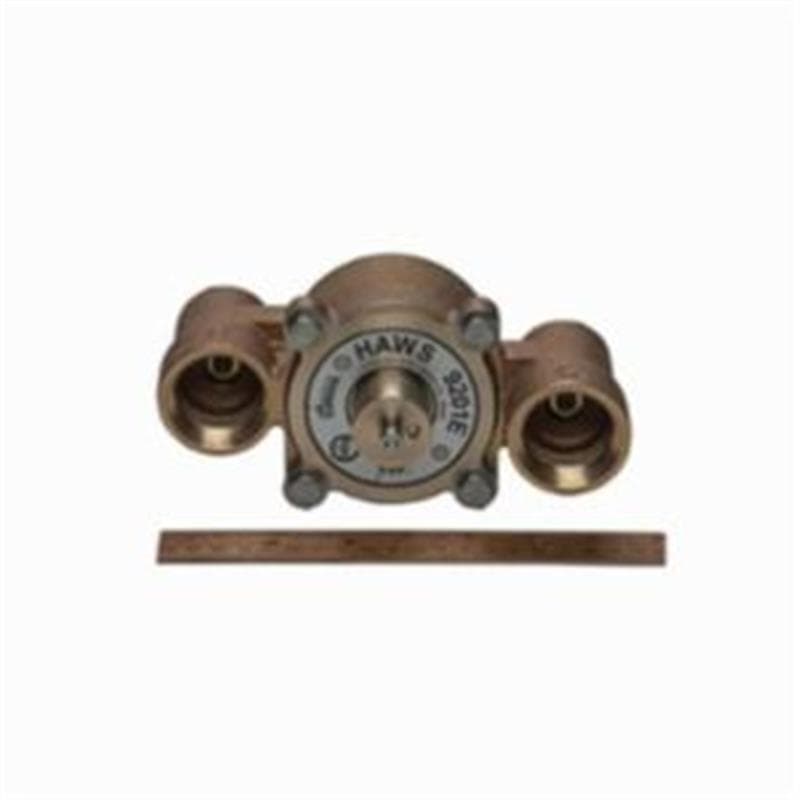

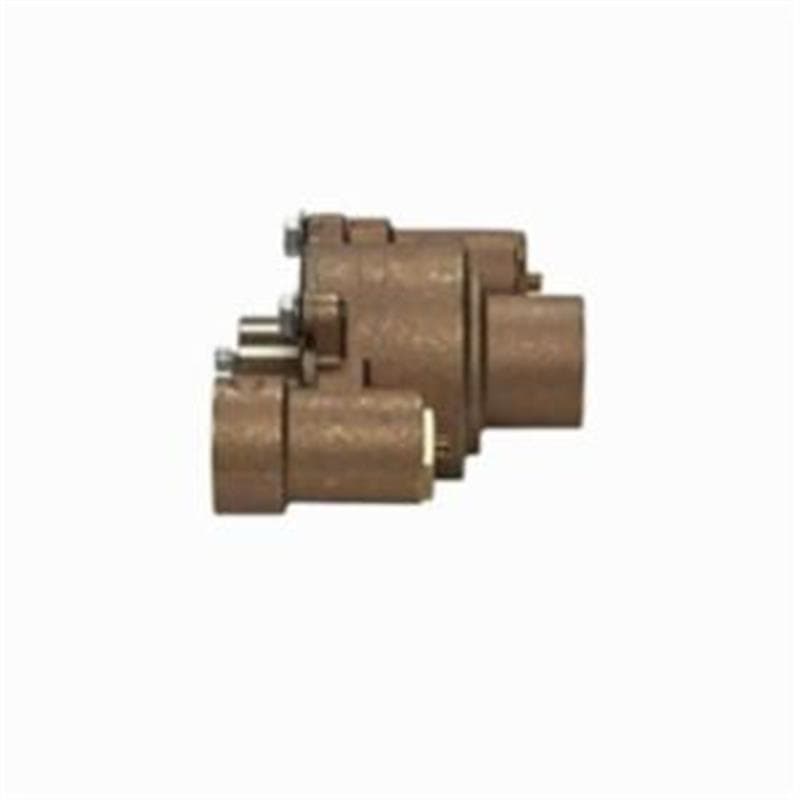

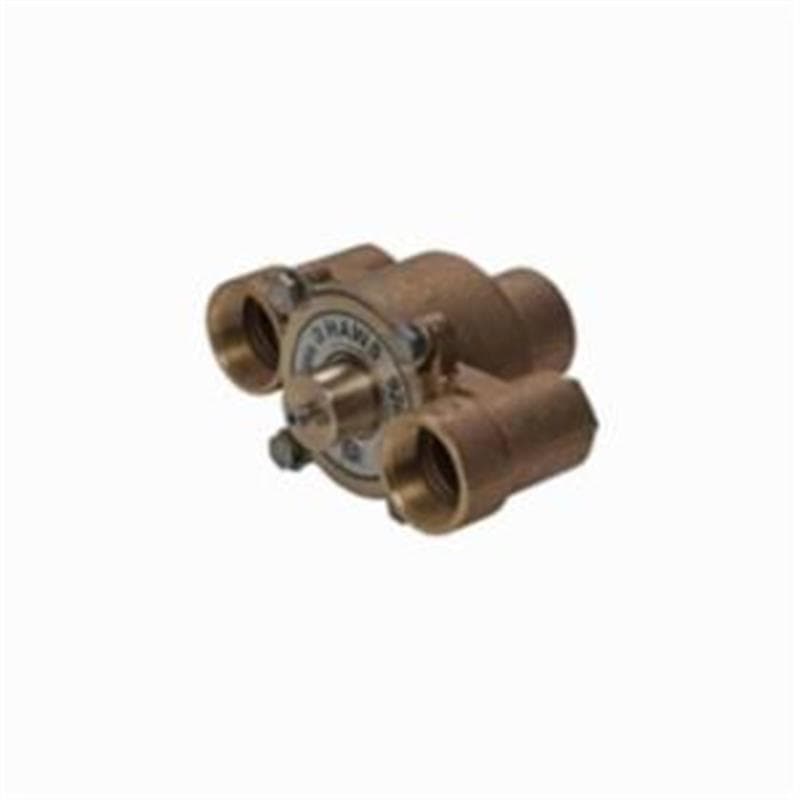

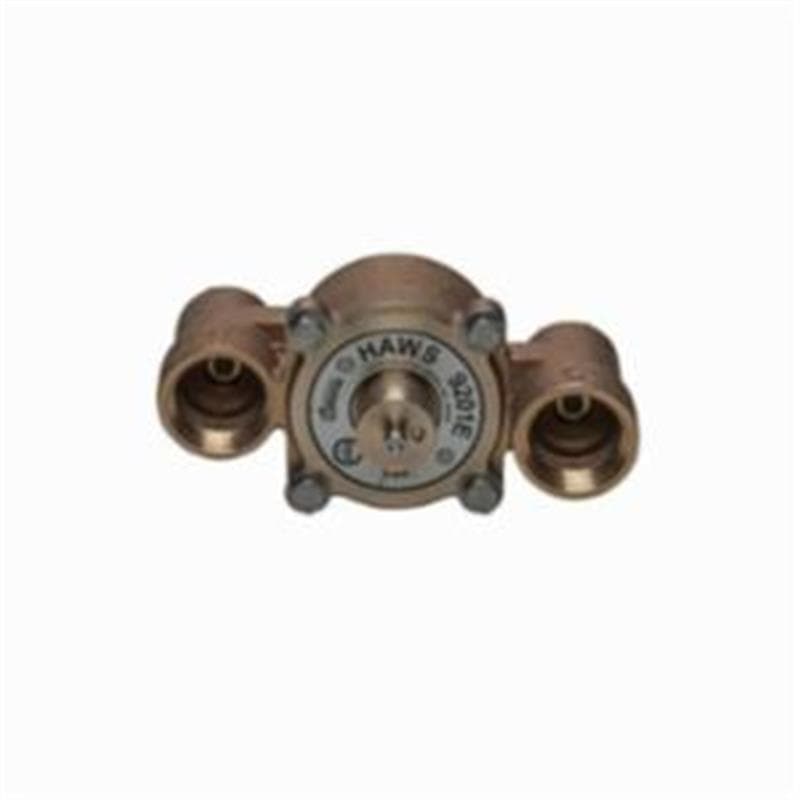

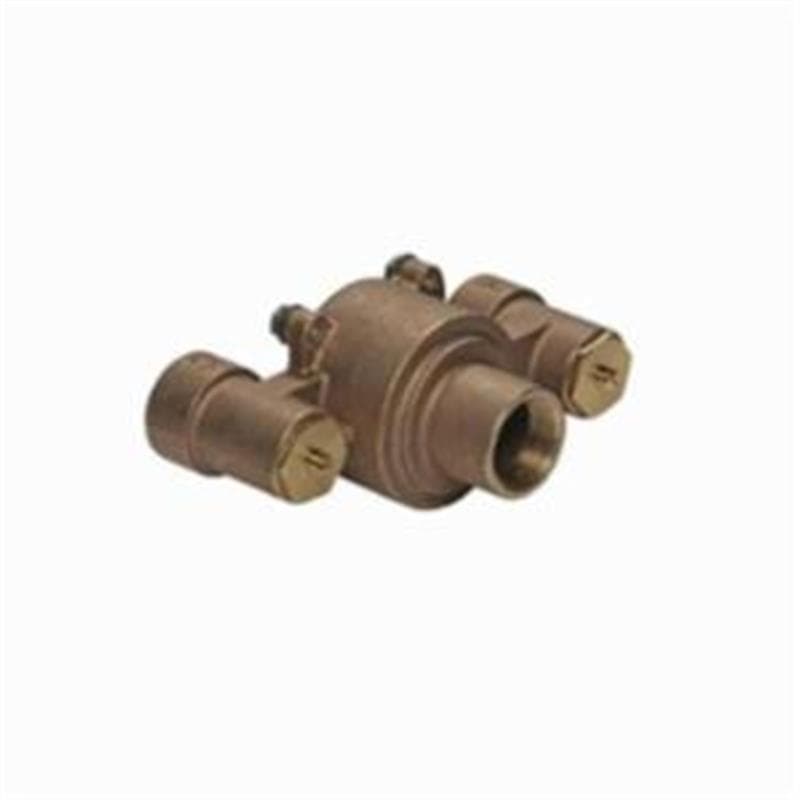

Haws® AXION® 9201E

A flow rate from 1 to 31 gpm (117.3 L) for better temperature control across the operating range Lowest internal pressure drop for this class of valve (Advantage where supply pressure is low) Wax based thermostat technology for fast response time with proven highly reliable temperature control Highest cold water bypass flow rate in the industry (65% of rated tepid flow rate) AXION® superior design and technology provide a complete safety solution for increased victim comfort Modular brass design with internal check stops Over-sized valve seats resist failures caused by foreign matter A new and efficient shuttle design eliminates valve sticking A custom funnel design improves temperature control at low flow rates Cold water by-pass valves are closed during normal operation, regardless of flow rate
