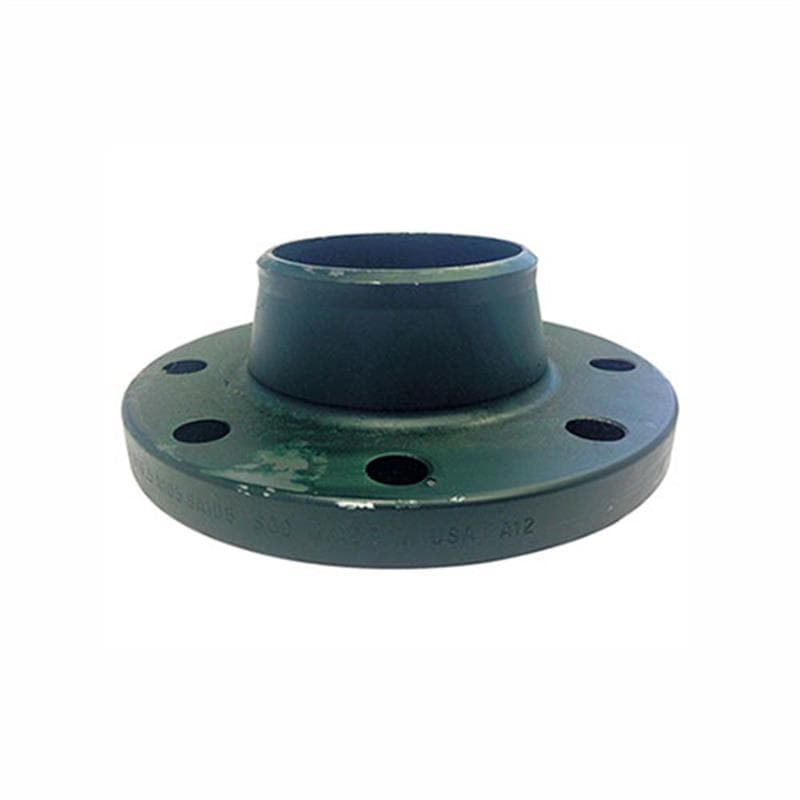

2 in 300Lb Standard Raised Face Weld Neck Flange

PN :
53678
MPN :
320-020-000
2" 300# STD RF WELD NECK FLANGE

What's the price?

Sign in or Register for Pricing and Inventory


  • ASME SA105/B16.5, ASTM A105, ISO 9001

  • AttributeValueUOM
    TypeRaised Face
    WarrantyLimited
    Nominal Size2in
    Inside Diameter2.07 in
    Outside Diameter6-1/2 in
    Thickness0.81 in
    Bolt Circle Diameter5 in
    Bore SizeSCH 40/STD
    Bolt Circle Diameter5 in
    Number of Bolt Holes8
    Bolt Hole Size3/4 in
    Number of Bolt Holes8
    Bolt Hole Size3/4 in
    Pressure Rating740 psi
    Pressure Class300 lb
    Pressure Rating740 psi
    Pressure Class300 lb
    Temperature Rating-20 to 100 deg F
    Hub Diameter3.31 in
    Temperature Rating-20 to 100 deg F
    Hub Diameter3.31 in
    Length Through Hub2.69 in
    Length Through Hub2.69 in
    MaterialForged Carbon Steel
