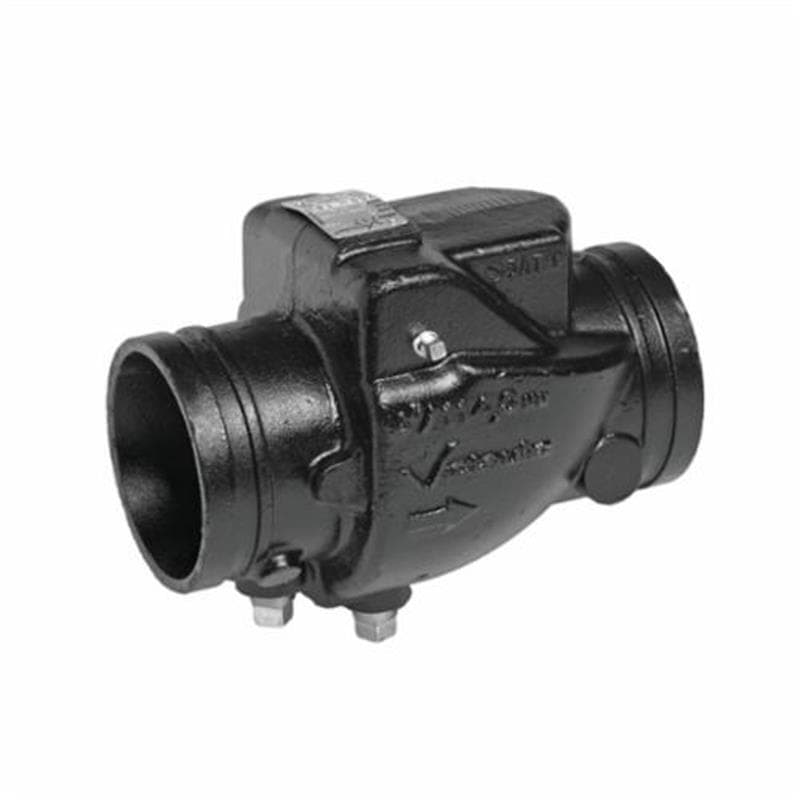

Victaulic® V100717Pe0 Check Valve, 10 in
PN :
38610
UPC :
688304125683
MPN :
V100717PE0
Victaulic® FireLock® V100717PE0 717 Check Valve, 10 in Nominal, Grooved End Style, 365 psi Max Pressure, Ductile Iron Body, ASTM A536, Grade 65-45-12, cULus Listed
Victaulic® FireLock® Check Valve, Series: 717, 10 in Nominal, Grooved, 365 psi Maximum, Specifications Met: ASTM A536, Grade 65-45-12, cULus Listed, 17 in Inlet to Outlet Length, 7.09 in Top to Inlet Center, Ductile Iron Body, Black Painted, 10-3/4 in OD
Features an elastomer encapsulated disc with an electroless nickel-plated seat Prevents backflow Single disc mechanism incorporates a spring assisted feature for non-slamming operation Can be installed either vertically (flow upwards only or horizontally Valve body cast with arrow indicator to assist with proper valve orientation Optional upstream and downstream pressure taps included on select sizes Rated for ambient temperature use in fire protection systems
