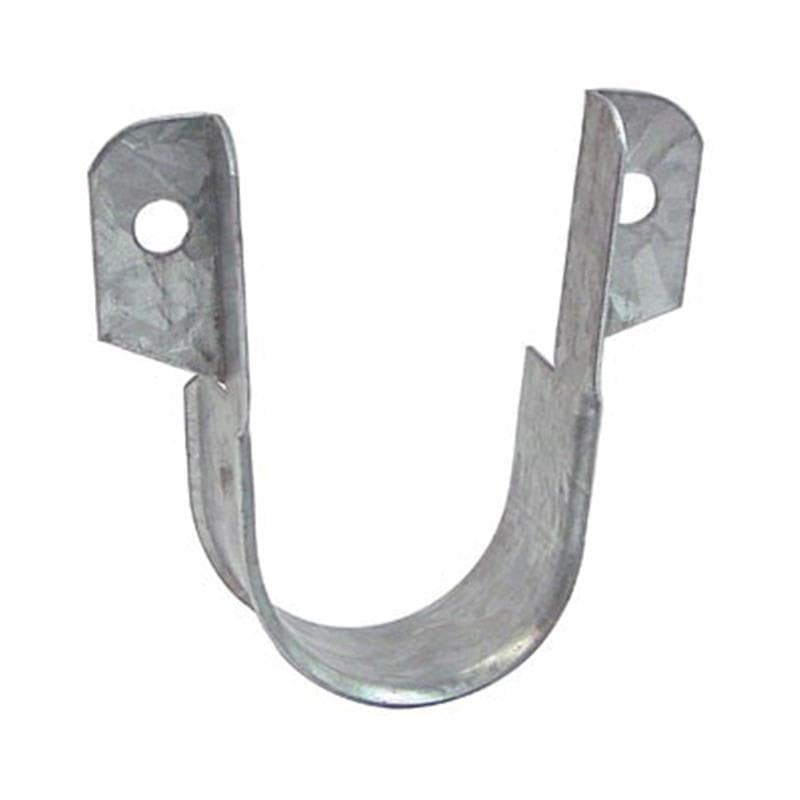

Phd Fig 077 2 in Side Mount 2-Hole 90 Strap

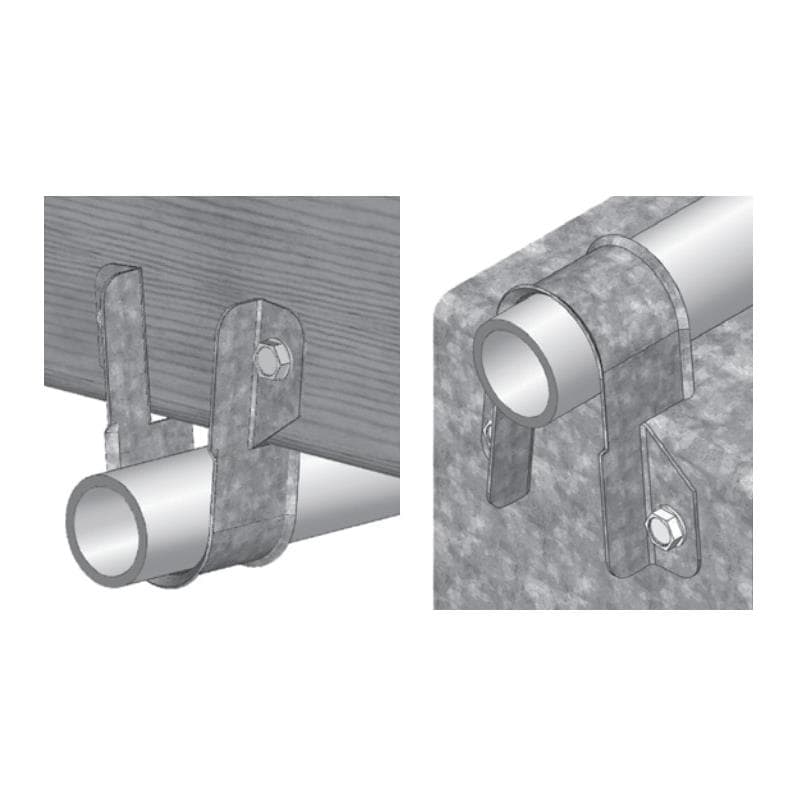

Beveled edge design helps protect the CPVC pipe from any rough surface Easily attaches to wood structure with no 10 x 1 in hex washer head self threading screw supplied with product No pre-drilling required Hanger for CPVC pipe in the horizontal position on the bottom of structural wood beams and steel 20 ga Can be used as a restrainer, only in steel 20 ga During installation, adjust hanger mounting flanges such that pipe contacts both mounting surface and hanger, minimizing vertical pipe movement Snap hanger over pipe Secure hanger to mounting surface with screws provided Do not anchor tightly to mounting surface Pipe must be allowed to move freely through hanger Steel applications require (2) STD-0090 no 14 x 1 in hex washer head self drilling tek screws, not supplied Specify CPVC pipe size, figure number and description ordering 1/4 in 90 deg hole Standard/Approvals: UL/ULC/cULus Listed
