Amtrol® 118-78 EXTROL® SX Series Vertical Floor-Standing Boiler System Expansion Tank, 20 gal
Amtrol® 118-78 EXTROL® SX Series Vertical Floor-Standing Boiler System Expansion Tank, 20 gal
PN :
37505
UPC :
642031119896
MPN :
118-78

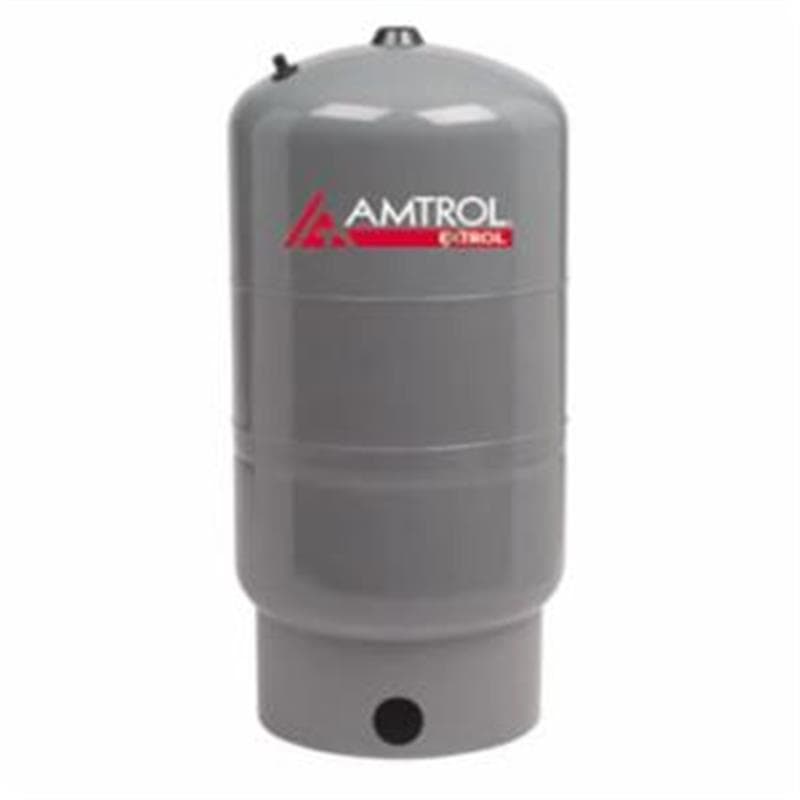

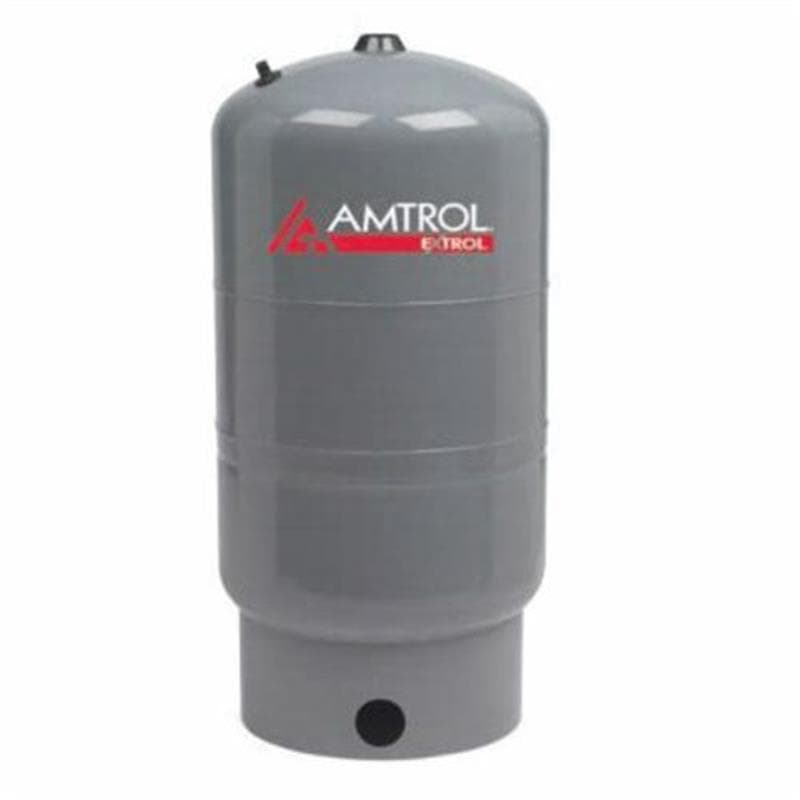

Amtrol® 118-78 EXTROL® SX Series Vertical Floor-Standing Boiler System Expansion Tank, 20 gal, 15 in Dia, 32 in Height, 100 psi
Amtrol® 118-78 EXTROL® SX Series Vertical Floor-Standing Boiler System Expansion Tank, 20 gal, 15 in Dia, 32 in Height, 100 psi, Acceptance Factor: 0.57, 11.3 gal Acceptance Capacity, 240 deg F, Heavy Duty Butyl/EPDM Diaphragm, Series: SX Series, Steel Shell, Urethane Topcoat, Domestic
These non-ASME tanks are available in sizes up to 86 gallons and can be used with high output boilers up to 1,500,000 BTU's Accepts expanded water as system temperature rises to reduce pressure build-up 12 psig factory precharged 1 in NPTF steel system connection 1-13/16 in stand to connection Projection welded air valve
