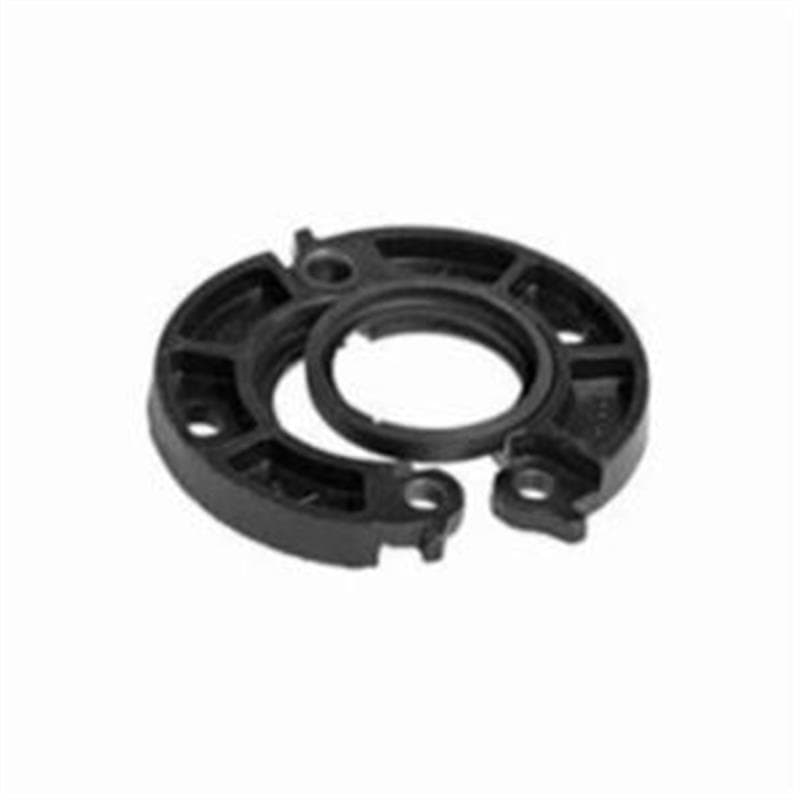

Victaulic® L024741PE0 Vic-Flange® 741-2-1/2-E-BLK Flange Adapter With EPDM Gasket, 2-1/2 in Nominal
Victaulic® L024741PE0 Vic-Flange® 741-2-1/2-E-BLK Flange Adapter With EPDM Gasket, 2-1/2 in Nominal
PN :
49197
UPC :
688304473302
MPN :
L024741PE0
Victaulic® L024741PE0 Vic-Flange® 741-2-1/2-E-BLK Flange Adapter With EPDM Gasket, 2-1/2 in Nominal, 300 psi, 0.88 in Thickness, Black
Victaulic® L024741PE0 Vic-Flange® 741-2-1/2-E-BLK Flange Adapter With EPDM Gasket, 2-1/2 in Nominal, 0.88 in Thickness, 300 psi, 7 in OD Flange, Enamel Coated, Black, Ductile Iron, Industry Standards: ASTM A536 Grade 65-45-12, Series: 741, Import
Vic-Flange adapters should not be used as anchor points for tie rods across non-restrained joints Directly incorporates ANSI class 125 or class 150 flanged components into a grooved system The design incorporates small teeth inside the key shoulder I.D to prevent rotation Style 741 Vic-Flange adapters provide rigid joints when used on pipe with standard cut or roll groove dimensions and consequently allow no linear or angular movement at the joint Working pressures shown are based on standard wall carbon steel pipe roll or cut grooved in accordance with Victaulic specifications Green stripes 2-7/8 in nominal bore size 5-1/2 in Dia bolt circle 4 bolts 5/8 in Dia bolt hole
