- Victaulic® V040705200 Butterfly Valve With 1/2 in Tap, 4 in
Victaulic® V040705200 Butterfly Valve With 1/2 in Tap, 4 in
PN :
25412
UPC :
883481001748
MPN :
V040705200

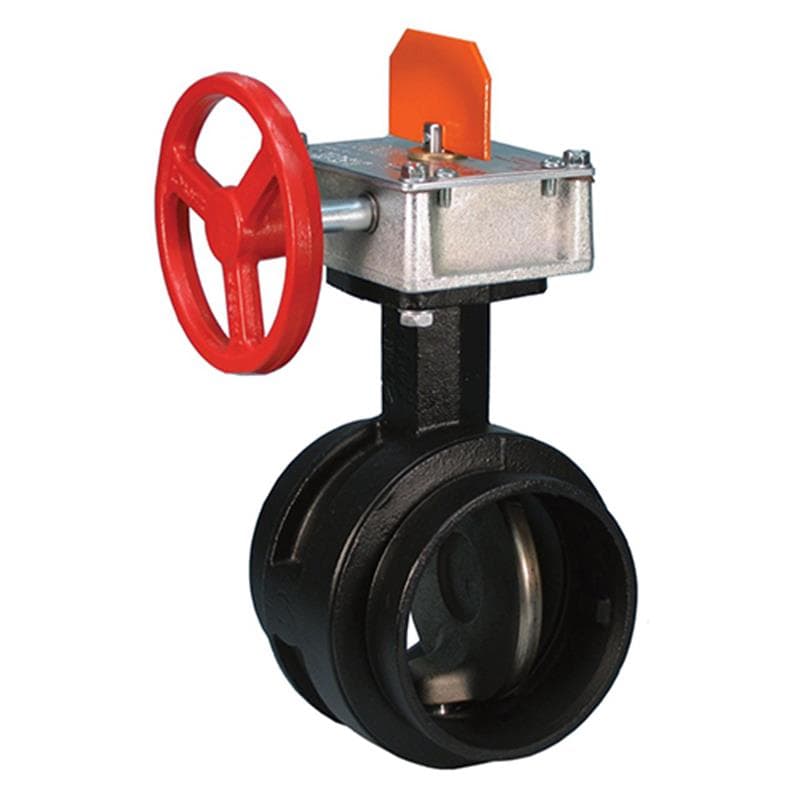

Victaulic® FireLock® V040705200 705 Fire Protection Supervised Open Butterfly Valve With 1/2 in Tap, 4 in Nominal, Grooved End Style, 300 psi Max Pressure, Ductile Iron Body, Handwheel Actuator
Victaulic® FireLock® Butterfly Valve, Fire Protection Supervised Open, Series: 705, 4 in Nominal, Grooved End Style, 300 psi Maximum, Specifications Met: ASTM A536, ASTM B733, ASTM A582, C/US UL Listed, VDS Compliant, FM and LPCB Approved, Media: Water, Handwheel Actuator, 4.63 in Inlet to Outlet Length, 8.81 in Top to Inlet Center, Ductile Iron Body, 416 Stainless Steel Trim, EPDM Seat/Carbon Steel Retaining Ring Softgoods, Alkyd Enamel, Black, 4-1/2 in OD Dimensions
Features a weatherproof actuator housing Stainless steel bearings with TFE lining Brass or bronze traveling nut on a steel lead screw, in a ductile iron housing
