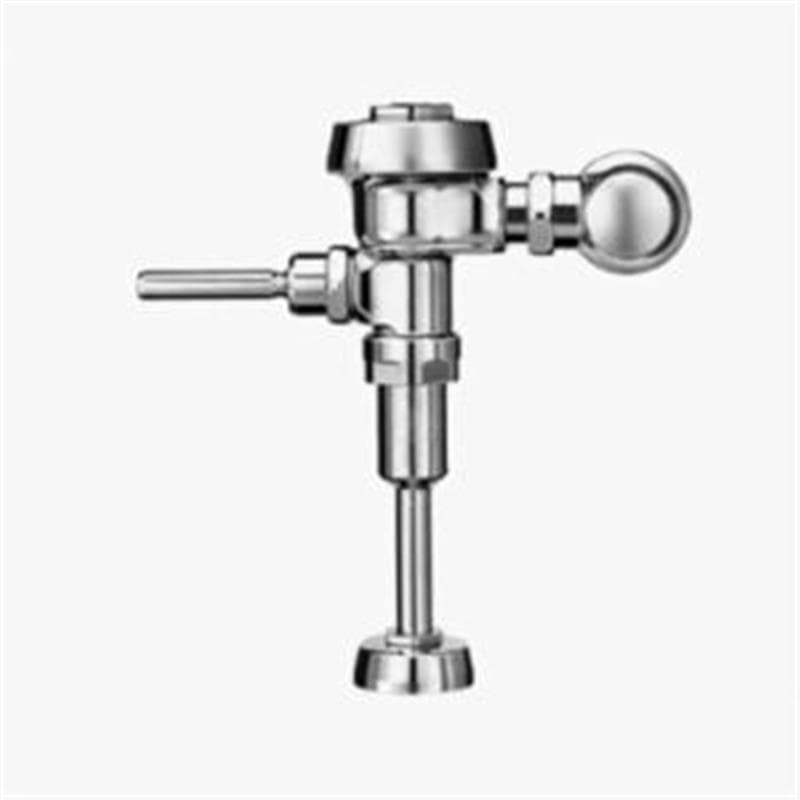

Sloan® 3912697 Royal® ROYAL 186 Single-Flush Manual Exposed Flushometer, 0.5 gpf Flush
Sloan® 3912697 Royal® ROYAL 186 Single-Flush Manual Exposed Flushometer, 0.5 gpf Flush
PN :
48665
UPC :
671254130579
MPN :
3912697
Sloan® 3912697 Royal® ROYAL 186 Single-Flush Manual Exposed Flushometer, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, Connection Location: Top Spud, 15 to 80 psi Pressure, 11-1/2 in Rough-In, Polished Chrome
Sloan® 3912697 Royal® ROYAL 186 Single-Flush Manual Exposed Flushometer, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 15 to 80 psi Pressure, Polished Chrome, Semi-Red Brass, Series: 186, Single-Flush, Urinal Fixture, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, Non-Hold Open Oscillating Handle, Domestic
Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume Flush accuracy is controlled by CID™ technology, also enhancing water efficiency Integrity of the product is maintained with the vandal resistant stop cap Durability is facilitated with high copper, low zinc brass castings for dezincification resistance Adjustable tailpiece Permex® synthetic rubber diaphragm with dual filtered fixed by-pass Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass Exposed urinal flushometer, for 3/4 in top spud urinals
