- Mueller Co A-2360-23

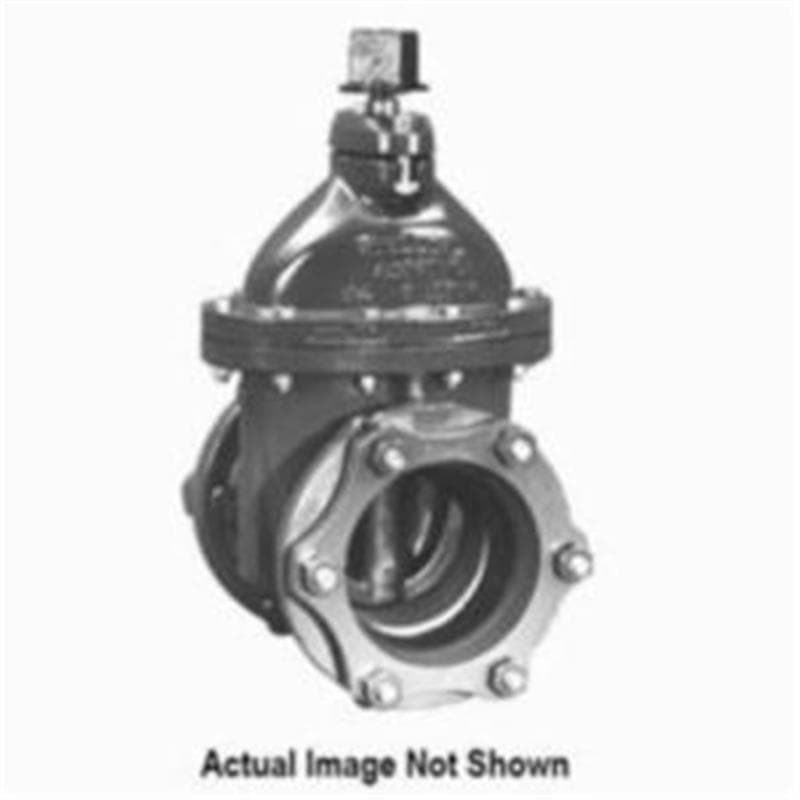

Mueller Co Gate Valve, Resilient Wedge, 8 in Nominal, Mechanical Joint, 200 psig, 12-1/2 in Inlet to Outlet Length, 21-1/2 in Top to Inlet Center, Cast Iron Body, Bronze Trim, Rubber O-Ring, Stuffing Box Seal/Nitrite Bonnet O-Ring, Celcon Washer Cap, Epoxy Coated
Iron body with nominal 10 mils MUELLER® Pro-Gard™ Fusion Epoxy Coated interior and exterior surfaces Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 standard and is certified to ANSI/NSF 61 Iron wedge, symmetrical and fully encapsulated with molded rubber, no exposed iron Non-rising stem (NRS) Triple o-ring seal stuffing box (2 upper and 1 lower o-rings), with fourth o-ring serving as dirt seal 500 psig (3447 kPa) static test pressure Dirt seal on 4 to 12 in valves
