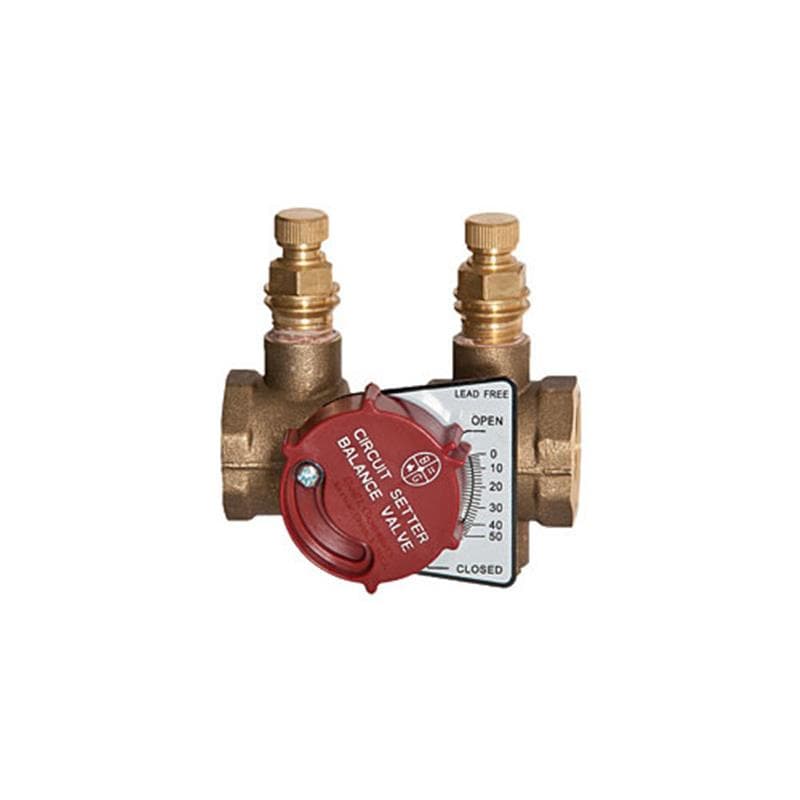

Bell & Gossett 117402LF CB-1 1/4S Lead Free Circuit Setter Balance Valve, 1-1/4 in Nominal
Bell & Gossett 117402LF CB-1 1/4S Lead Free Circuit Setter Balance Valve, 1-1/4 in (Sweat), 1-1/4 in Nominal, C, -4 to 250 deg F, Media: Water, 4.91 in Inlet to Outlet Length, Brass Body, EPDM Trim, Glass/Carbon Filled TFE Seat Ring, 3.08 in W x 3.69 in H, 1-1/4 in
Save time, energy and water with the lead-free circuit setter plus and circuit setter plus RF Designed for all plumbing and HVAC systems Provides equal flow throughout all circuits to conserve water and optimize system efficiency Calibrated accurate flow control and measurement Bi-directional design allows any installation configuration Externally adjustable manual balance valve for easy adjustment Reduces pump energy requirements Meets or exceeds stringent codes for potable water Includes memory stop indicator Provides drain option Provides positive shut off and isolation Brass with EPT check valves readout valve 304 stainless steel ball Lead free Includes pressure/temperature ports 95-5 tin-antimony solder Maximum pressure limitations 200 psi at 250 deg F to 300 psi at 200 deg F Model CB-1-1/4S LF
