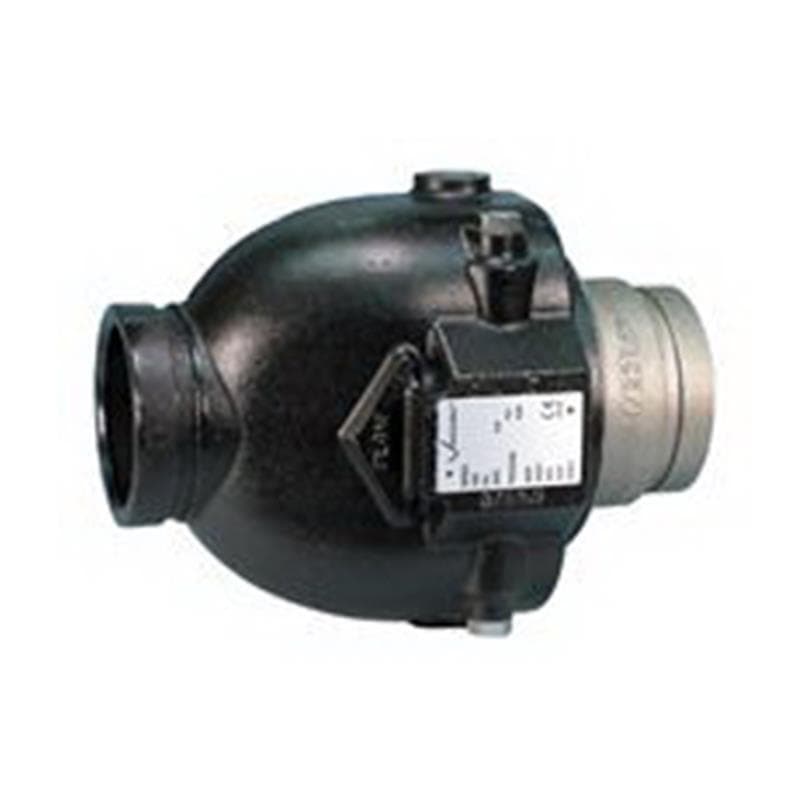

Victaulic® V020717PH0 FireLock® 717H High Pressure Check Valve, 2 in Nominal
Victaulic® V020717PH0 FireLock® 717H High Pressure Check Valve, 2 in Nominal
PN :
42109
UPC :
68830465574
MPN :
V020717PH0
Victaulic® V020717PH0 FireLock® 717H High Pressure Check Valve, 2 in Nominal, -20 to 180 deg F, 6.46 in W, Orange, 365 psi
Victaulic® V020717PH0 FireLock® 717H High Pressure Check Valve, 2 in Nominal, 365 psi Maximum, -20 to 180 deg F, 8.66 in Inlet to Outlet Length, Black Painted, Orange, High Pressure, Grooved, Specifications Met: ASTM A536, Grade 65-45-12, cULus Listed, 3.23 in Top to Inlet Center, Ductile Iron Body, Nitrile Seal, 6.46 in W, Series: 717H
Features a stainless steel disc which seats against the O-ring seal, when mounted on the electroless nickel-plated face Prevents backflow Single disc mechanism incorporates a spring assisted feature for non-slamming operation Can be installed either vertically (flow upwards only or horizontally Valve body cast with arrow indicator to assist with proper valve orientation Optional upstream and downstream pressure taps included on select sizes Rated for ambient temperature use in fire protection systems
